Geometry Problem 1094: Tangent Circles, Tangent Chord, Radius, Sagitta of Arc

Geometry Problem. Post your solution in the comment box below.
Level: Mathematics Education, High School, Honors Geometry, College.

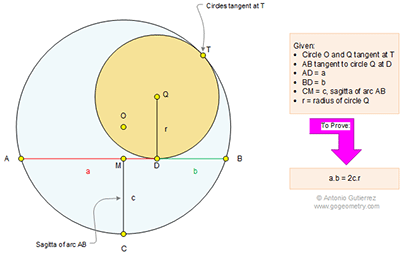

Click the diagram below to enlarge it.

Online Math: Geometry Problem 1094: Tangent Circles, Tangent Chord, Radius, Sagitta of Arc.

Posted by Antonio Gutierrez at 11:01 AM
Labels: , , , , ,

5 comments:

  1. Jacob HA (EMK2000)March 8, 2015 at 2:04 PM

    Observe that CDT are collinear,
    thus ab=CD×DT.

    Now since
    CD=c/cos∠MDT
    DT=2r cos∠QDT

    Hence, ab=2CR.

    ReplyDelete
  2. PravinMarch 8, 2015 at 8:18 PM

    A typo I think
    It should be CD=c/cos∠MCD
    (ab = 2cr of course)

    ReplyDelete
    Replies
    1. Jacob HA (EMK2000)March 9, 2015 at 6:16 AM

      Thanks Pravin. It's MCD, and ab=2cr (lower case).

      Delete
  3. Sumith PeirisNovember 16, 2015 at 2:57 AM

    Geometry solution

    O,Q,T are collinear

    OQ^2 = MD^2 + (QD-OM)^2

    So { (a-b)/2}^2 + (r-R+c)^2 = (R-r)^2.......(1)

    Applying Pythagoras to Tr. AOM

    (R-c)^2 + {(a+b)/2}^2 = R^2...,,,(2)

    (2) -(1) and simplifying using the difference of 2 squares

    ab + r(2R-2c-r) = 2rR -r^2

    Which further simplifies to

    ab = 2cr

    Sumith Peiris
    Moratuwa
    Sri Lanka

    ReplyDelete
  4. c.t.e.o.January 18, 2021 at 10:01 AM

    Geometry solution :No Pythagoras , by similarity and the power of a point
    https://photos.app.goo.gl/AT5Kee5YWYq6dBdf8
