Geometry Problem. Post your solution in the comments box below.

Level: Mathematics Education, High School, Honors Geometry, College.

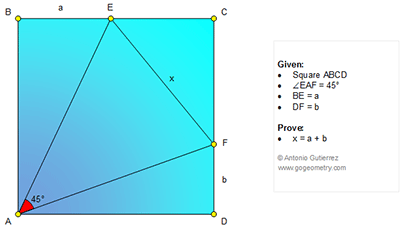

Click the diagram below to enlarge it.

## Wednesday, January 21, 2015

### Geometry Problem 1076: Square, 45 Degrees, Angle, Sum, Distance, Auxiliary Construction

Labels:
45 degrees,
angle,
auxiliary line,
distance,
square,
sum of segments

Subscribe to:
Post Comments (Atom)

Draw circle centered A, radius=AD

ReplyDeleteLocate point H on the circle such that ∠ (HAF)= ∠ (DAF)= alpha

Triangles FAD congruence to HAF ( Case SAS) => FH=FD= b and ∠(AHF)=90

We have ∠ (EAH)=45- alpha=∠ (BAE) => triangles EAH congruence to EAB

So EH=EB=a and ∠ (EHA) 90

So x= a+b

Rotate anti-clockwise 90°, center at A.

ReplyDeleteThen D→B. Let F→G.

Then AF=AG and ∠EAF=∠EAG.

So ΔEAF congruent to ΔEAG.

Hence, x=EF=EG=a+b.

Fold AB, AD along AE, AF respectively.

ReplyDeleteB, D land at the same point P on EF.

So x = EP + PF = EB + DF = a + b.

Extend CD to G such that DG = a, then Tr.s ABE and ADG are congruent from which we can deduce that Tr.s AFE and AGF are also congruent.

ReplyDeleteHence x= FG = a+b

Sumith Peiris

Moratuwa

Sri Lanka

if you rotate the 45 degree wedge, while extending and shortening AF and AE so they F and E are always on the square, EF will form a quarter circle, kinda like what is happening here: https://www.wikihow.com/images/thumb/c/c0/Draw-a-Parabolic-Curve-%28a-Curve-with-Straight-Lines%29-Step-18.jpg/aid5583818-v4-728px-Draw-a-Parabolic-Curve-%28a-Curve-with-Straight-Lines%29-Step-18.jpg

ReplyDeleteso EF will be tangent to a circle centered at A with radius AB. let the point of tangency be n. because of tangent properties, BE = a = EN and DF = b = FN. FN + EN = x, so a + b = x

See the

ReplyDeletedrawingDefine α = ∠BAF and β = ∠DAE

α+β+45°=90° => α+β = 45°

Define E’ rotation of E anticlockwise with an angle of 90°

=>AE=AE’, β = ∠DAE = ∠BAE’

∠FAE’= α+β = 45°

ΔFAE’ is congruent to ΔFAE (SAS) => FE’=FE

Therefore

a+b=x
