Problem 786: Right Triangle, Altitude, Hypotenuse, Cevian, Perpendicular, Ratio, Metric relations

Geometry Problem
Level: Mathematics Education, High School, Honors Geometry, College.

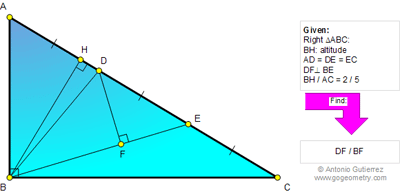

Click the figure below to see the complete problem 786.

Online Geometry Problem 786: Right Triangle, Altitude, Hypotenuse, Cevian, Perpendicular, Ratio, Metric relations.

6 comments:

  1. http://img7.imageshack.us/img7/479/problem786.png

    Draw lines per sketch.
    Let AC=3, AH=x => BH=6/5
    We have BH^2=AH.HC …( relation in right triangle)
    Or 36/25=x(3-x)
    We get 2 solutions : x=3/5 or x=12/5
    For x=3/5 , HD=2/5 and HE=7/5
    So tan(beta)=1/3 and tan(alpha)=7/6
    DF/BF=tan(alpha-beta)= 3/5
    Due to symmetric , we will get the same result for x=12/5

    ReplyDelete
  2. Let AB=a, BC=b, AC=c, BH=h.

    Since ab=ch, h/c=2/5,
    ab:c^2 = ab:(a^2+b^2) = 2:5

    Solving it, we have
    a:b = 1:2 or a:b = 2:1

    WLOG, let a:b = 1:2.

    Let vecBC = 2i, vecBA=j.

    Using vector, we have
    vecBD=2/3 (i+j)
    vecBE=1/3 (4i+j)

    Therefore, angle DBC = 45 degrees
    also, tan(angle EBC)=1/4

    Hence,
    DF/BF
    = tan(angle DBE)
    = tan(45 - angle EBC)
    = [1 - 1/4] / [1 + 1/4]
    = 3/5

    ReplyDelete
  3. let AC=30, then BH=12
    AB=6sqrt(5), BC=12sqrt(5), AH=6,HD=4, BD=4sqrt(10), BE=6sqrt(10)
    the area of triangle BDE is 60
    then DF=2sqrt(10)
    DF/BF=sqrt(3)/3

    ReplyDelete
    Replies
    1. To Anonymous (Problem 786) your solution is not correct.

      Delete
  4. Let AH = p, BD = d, BE = e and BF = h and BF = g

    AH. HC = BH^2 so

    p(b-p) = 4b^2/25

    Solving the quadratic p = b/5 or 4b/5

    Take p = b/5; c^2 = b^2/5 and a^2 = 4b^2/5

    Hence a/c = 2 and so BD bisects the right angle at B

    HD = b/3 -b/5 = 2b/15 so d^2 = 8b^2/45

    Similarly from right Tr. BHE e^2 = 17b^2/45

    From the calculations using pure geometry alone become a bit unwieldy

    We can use the fact that eh = 2b^2/15 by noting that the Tr.s ABD and EBD have equal areas

    Also since BFDH is cyclic h/(2b/5) = (b/3)/e = (e-g)/ (2b/3)

    But the easiest way is to use Trigonometry as Jacob has done above so that h/g = tan DBF = (1-1/3)/

    ReplyDelete
  5. Correction tanDBF = (1-1/4)/(1+1/4)= 3/5

    ReplyDelete
