Geometry Problem. Post your solution in the comments box below.

Level: Mathematics Education, High School, Honors Geometry, College.

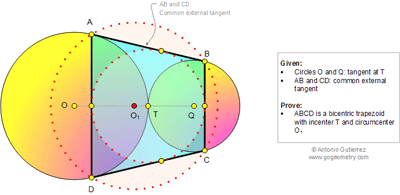

Click the figure below to see the complete problem 1006.

## Tuesday, April 22, 2014

### Geometry Problem 1006: Tangent Circles, Common External Tangent, Bicentric Trapezoid

Labels:
bicentric quadrilateral,
circle,
common tangent,
tangent,
trapezoid

Subscribe to:
Post Comments (Atom)

This comment has been removed by a blog administrator.

ReplyDeleteThis comment has been removed by a blog administrator.

DeleteThis comment has been removed by a blog administrator.

DeleteThis comment has been removed by a blog administrator.

ReplyDeleteThis comment has been removed by the author.

ReplyDeleteProblem 1006 has been replaced. Thanks.

ReplyDeleteSince EA = ET = EB, FC = FT = FD and AB = CD.

ReplyDeleteAlso AD//BC so ABCD is an isosceles trapezoid.

Then EF = (AD + BC)/2. (see the solution of problem 1008).

EF = AB = CD so AB + CD = AD + BC then ABCD is circumscribed quadrilateral .

Any isosceles trapezoid is a cyclic quadrilateral.

Fie E,F ,G si H mijloacele segmntelor AB,BC,CDsi respectiv AD=>EFGH patrat,(deoarece ABCD este un trapez isoscel si are diagonalele congruente)

ReplyDeleteExtend AB, DC to meet at E. Then EBA and ECD are tangents drawn to the 2 circles from an external point E and are hence equal for each circle.

ReplyDeleteSo Tr.s EAD & EBC are isoceles and similar since they share the same angle <E. So BC//AD and < B = < D. Hence ABCD is a cyclic trapezoid with AB = CD.

The circumcentre of ABCD must lie on OQ the perpendicular bisector of both AD and BC. Find O1 on OQ such that AO1 = BO1 and we can see easily thro congruence that these are also equal to DO1 and CO1. Hence O1 is the circumcentre

Now draw the common internal tangent at T which is seen to bisect AB and CD so AT is perpendicular to BT and likewise DT to CT. Hence thro congruence we can show that the perpendiculars from T to ths 4 sides are all equal hence ABCD has an incircle with C as centre

Sumith Peiris

Moratuwa

Sri Lanka

Sorry typo.

ReplyDeleteLast line should be "with T as centre"
